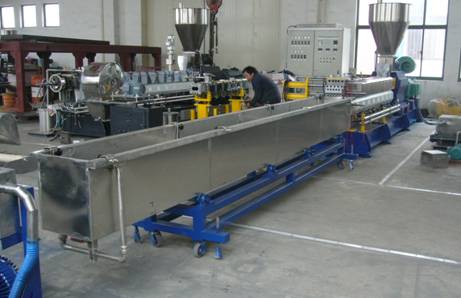

PET Flakes granulating line

1:Feeding conveyer
a.Diameter of screw:200mm
b.Motor power:1.5KW

2: SHJ-72 twin-screw mixing extruder

a.Diameter of screw:71mm
b.L/D:36:1
c.Max. speed of screw:500rpm
d.Chamber length:2610mm
e.Chamber quantity:9
f.Main motor power:110KW

3:Twin-screw metering feeding machine

a.Driving motor:2.2KW /AC, controlled by inverter

b.Reducer ratio: 17

c. Feeding screw: 1 pc

4: Vacuum system
a.Driving motor:2.2KW AC
b.Vacuum room, vacuum meter, vacuum pipe and water tank: each 1 pc

5: Quick Hydraulic screen changing device
a.Hydraulic station power:1.5KW
b.The cylinder drives the piston to change the screen quickly.

6:Water cooling pellets cutting system
a.Water cooling pellets cutting mould
b.Wind drying:2.2KW AC.
c. SS water tank and supporters.
d.LQ-500 Water cooling pellets cutting machine, motor power: 5.5kw, speed can be adjusted.

7:End-products silo(Including wind delivery system)
a.Voluum:1m3
b.Fan power:2.2KW

8: Electric control system
a.3*380V, AC, 50HZ(customized by your voltage and frequency)
b.Main control parts made by Siemens with CE certificate.
c. Feeding conveyer controlled by iverter.
d.Electromagnetic valve made by ACL, from Italy.
e. Control button made by Schneider, German.
f.The electric control cabinet includes: temperature control system, driving system, linkage control system.

9:Spare parts
a.Heating element 3 pcs
b. Input and output seal for the driving box 1 ste(Total 3 pcs)
c、O-ring for Vacuum room 3 pcs
Parts for screw 10 pcs
RF(rapid fuse) 10 pcs
Insulation glove 2 pairs
d.Tools 1 set
e.Pressure meter, pressure sensor Each 1 pc
f. Speed meter 1 pc
g.Temperature control meter 1 pc
h.SSR 2 pcs
i.ACL Electromagnetic valve, ACL 1 pc
j.Stationary blades for cutter, rubber roller Each 1 pc
